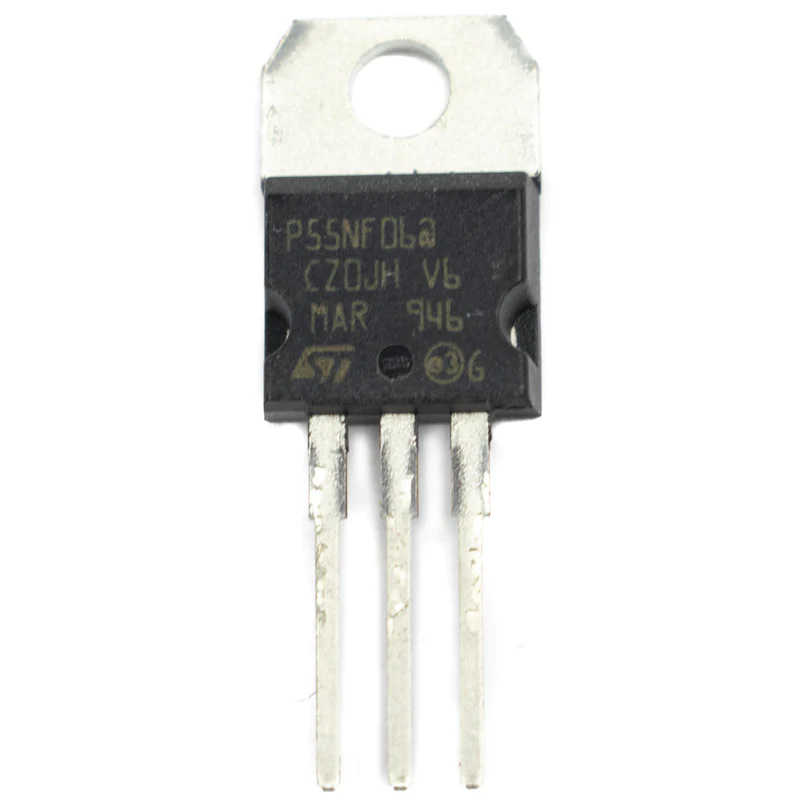

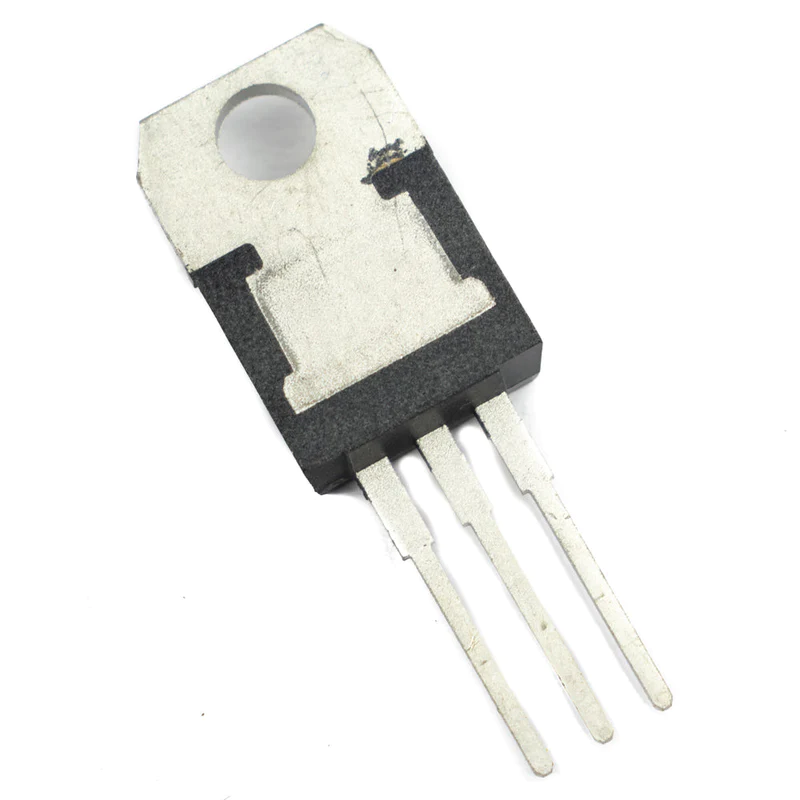

STP55NF06 60V 50A N-Channel Power MOSFET
STP55NF06 60V 50A N-Channel Power MOSFET
STP55NF06 60V 50A N-Channel Power MOSFET
STP55NF06 60V 50A N-Channel Power MOSFET
STP55NF06 60V 50A N-Channel Power MOSFET
Click to enlarge
STP55NF06 60V 50A N-Channel Power MOSFET
STP55NF06 60V 50A N-Channel Power MOSFET
STP55NF06 60V 50A N-Channel Power MOSFET
STP55NF06 60V 50A N-Channel Power MOSFET
STP55NF06 60V 50A N-Channel Power MOSFET
Home Mosfet STP55NF06 – Mosfet – 60V 50A N-220 Package
P30NF10 (STP30NF10) MOSFET - 100V 35A N-Channel Power MOSFET TO-220 Package ₹37.00
Back to products
P80NF55 (STP80NF55) MOSFET - 55V 80A N-Channel Power MOSFET TO-220 Package ₹46.00
ST Micro

STP55NF06 – Mosfet – 60V 50A N-220 Package

₹20.00

Description – STP55NF06

STP55NF06 – Power MOSFETs have been developed using STMicroelectronics? unique STripFET process, which is specifically designed to minimize input capacitance and gate charge. This renders the devices suitable for use as primary switches in advanced high-efficiency isolated DCDC converters for telecom and computer applications, and applications with low gate charge driving requirements.

Mfr. No: STP55NF06
Mfr.:STMicroelectronics
Description: MOSFET N-Ch 60 Volt 55 Amp
Datasheet: ?STP55NF06 Datasheet (PDF)



Brand

ST Micro

1000 in stock (can be backordered)

Add to wishlist
SKU: CMMo-0082 Category: Mosfet
Share:
  • Description
  • Reviews (0)
  • About brand
  • Shipping & Delivery
Description

Product Description – STP55NF06

STP55NF06 power MOSFETs have been developed using STMicroelectronics’ unique “Single Feature Size” strip-based process, which is specifically designed to minimize input capacitance and gate charge. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characteristics that make it suitable for use as a primary switch in advanced high-efficiency isolated DC-DC converters for telecom and computer applications, also for applications where low gate driving charge is required.

Features:- STP55NF06

  • 100% avalanche tested
  • ?Application-oriented characterization
  • ?Switching application
  • Number of Channels: 1
  • Transistor Polarity: N -Channel
  • Drain-Source Breakdown Voltage (Vds): 60V
  • Continuous Drain Current (Id):50A
  • Operating Temperature Range: -55 – 150?C
Applications -: STP55NF06
  • High Current, High Switching Speed
  • Motor Control
  • Audio Amplifier
  • DC-DC & DC-AC Converters
  • Automotive
  • Switching application
  • Industrial
  • Communications & Networking
  • Computers & Computer Peripherals
Specification -: STP55NF06
Model STP55NF06
Brand STMicroelectronics
Drain-Source Voltage 60V DC
Drain-Gate Voltage 60V DC
Gate-Source Voltage ?20V DC
Drain Current 50A @ 25?C, 35A @100?C
Mounting Through Hole
Package TO-220
Pulsed Drain Current 200A
Power Dissipation 30W
Single Pulse Avalanche Energy 350mJ
Operating Temperature -55?C to 175?C
Quantity 50 Pieces

Package Includes: STP55NF06

1 x P55NF06 – 55NF06 (STP55NF06) MOSFET N-Channel Power MOSFET TO-220 Package – 60V 50A
