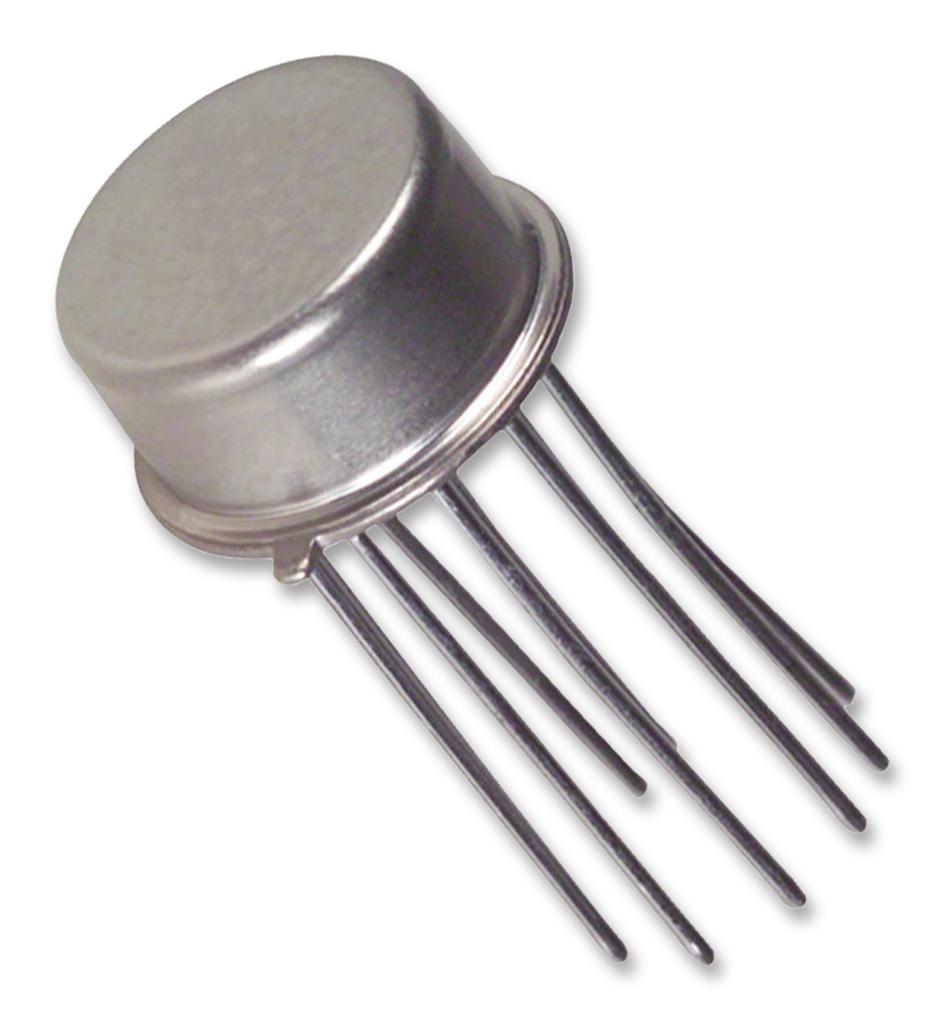

LM118H

The LM118 series are precision high speed ? 15 MHz Small Signal Bandwidth
operational amplifiers designed for applications
? Ensured 50V/?s Slew Rate requiring wide bandwidth and high slew rate. They
? Maximum Bias Current of 250 nA feature a factor of ten increase in speed over general
purpose devices without sacrificing DC performance. ? Operates from Supplies of ?5V to ?20V
? Internal Frequency Compensation The LM118 series has internal unity gain frequency
compensation. This considerably simplifies its ? Input and Output Overload Protected
application since no external components are
? Pin Compatible with General Purpose Op necessary for operation. However, unlike most
Amps internally compensated amplifiers, external frequency
compensation may be added for optimum
performance. For inverting applications, feedforward
compensation will boost the slew rate to over
150V/?s and almost double the bandwidth.
Overcompensation can be used with the amplifier for
greater stability when maximum bandwidth is not
needed. Further, a single capacitor can be added to
reduce the 0.1% settling time to under 1 ?s.
