FEATURES:

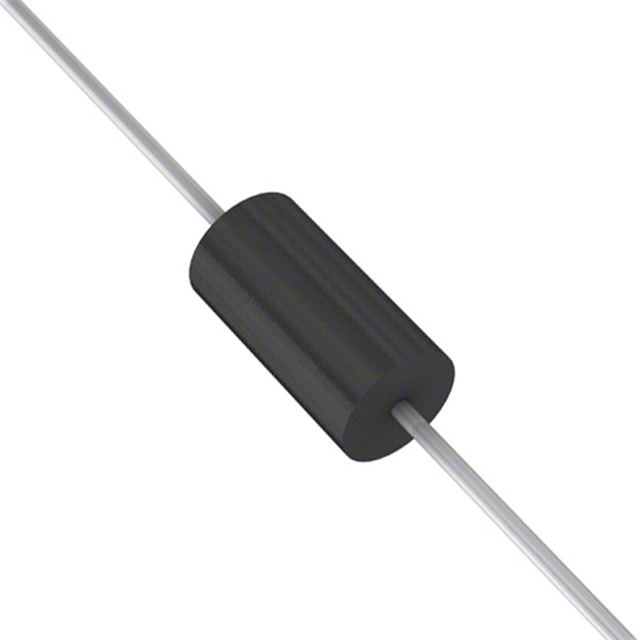

In short, the provided information describes the specifications and characteristics of a diode or transient voltage suppressor device. Here’s a concise summary:
– **Peak Pulse Capability:** 1500W at a 10/1000Ī¼s waveform, with a very low duty cycle (0.01%).
– **Package:** DO-201 (glass passivated chip junction).
– **Response Time:** Very fast, typically less than 1.0ps from 0 Volts to BV min.
– **Clamping Capability:** Excellent.
– **Failure Mode:** Typically shorts from over-specified voltage or current.
– **Testing Standards:** Whisker test based on JEDEC JESD201A, ESD protection per IEC 61000-4-2 (30kV air/contact), EFT protection per IEC 61000-4-4.
– **Electrical Properties:** Low incremental surge resistance, typical leakage current (IR) less than 1Ī¼A when VBR min > 12V.
– **Temperature Handling:** Can withstand high temperatures up to 260Ā°C during reflow soldering.
– **Temperature Coefficient:** VBR (breakdown voltage) varies with temperature based on a defined coefficient (Ī±T).
– **Packaging:** Plastic package rated V-0 for flammability, matte tin lead-free plated, halogen-free and RoHS compliant.
– **Pb-free E3:** Indicates compliance with Pb-free standards, including lead-free interconnects and tin terminal finish.
