TB6560AHQ – TOSHIBA
TB6560AHQ - TOSHIBA BiCD Integrated Circuit ₹650.00

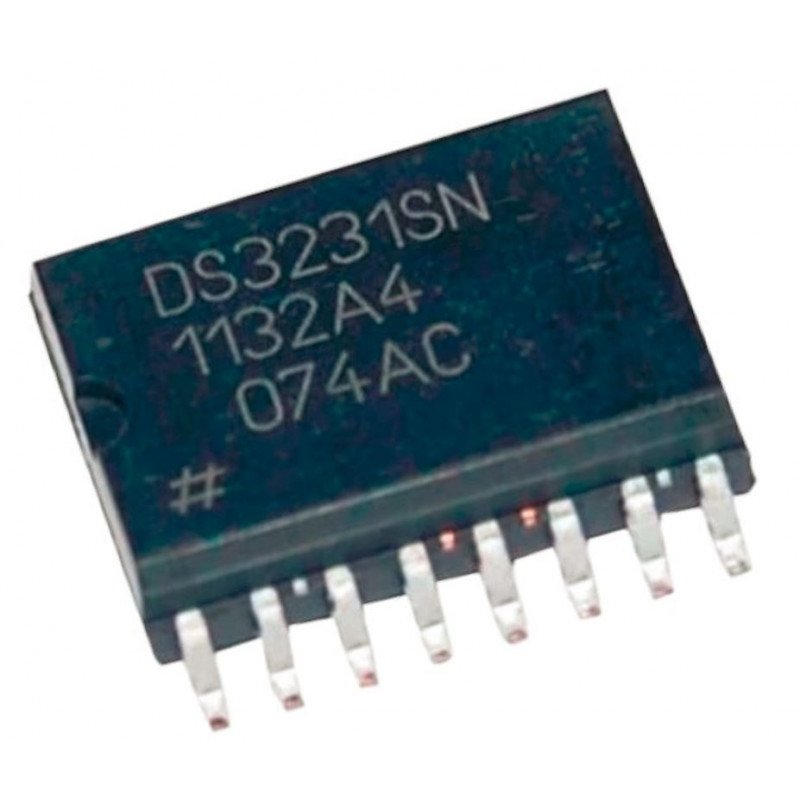

DS3231S – IC

₹290.00

DS3231 IC is a low-cost, extremely accurate I?C real-time clock (RTC) with an integrated temperature compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when the main power to the device is interrupted. The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line.
The DS3231 is available in commercial and industrial temperature ranges and is offered in a 16-pin, 300-mil SO package.

Add to compare
Add to wishlist
SKU: CMTRTC-0020 Category:
Description

Product Overview of DS3231S – IC

The DS3231S# is an extremely accurate I?C Real-time Clock (RTC) with an integrated temperature compensated crystal oscillator (TCXO) and crystal. The device incorporates a battery input and maintains accurate timekeeping when main power to the device is interrupted. The integration of the crystal resonator enhances the long-term accuracy of the device as well as reduces the piece-part count in a manufacturing line. The RTC maintains seconds, minutes, hours, day, date, month and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with an AM/PM indicator. Two programmable time-of-day alarms and a programmable square-wave output are provided. Address and data are transferred serially through an I?C bidirectional bus.

Features – DS3231S – IC

  • Highly accurate RTC completely manages all timekeeping functions
  • ?3?C Accuracy digital temperature sensor output
  • Register for aging trim
  • Active-low RST output/pushbutton reset debounce input
  • Programmable square-wave output signal
  • Simple serial interface connects to most microcontrollers
  • Battery-backup input for continuous timekeeping
  • Underwriters Laboratories? (UL) recognized

Applications – DS3231S – IC

Communications & Networking, Metering, Sensing & Instrumentation

DATASHEET for DS3231S – IC – Click Here?
