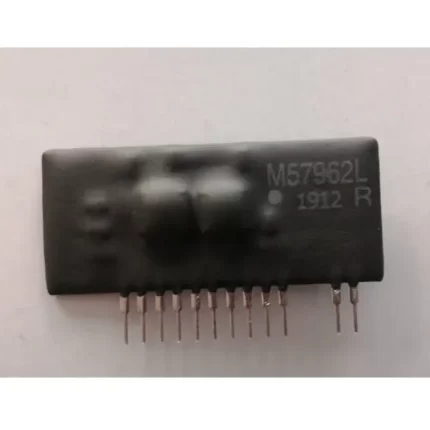

M57962L Hybrid IC For Driving IGBT Modules
M57962L is a hybrid integrated circuit designed for driving n-channel IGBT modules in any gate amplifier application. This device operates as an isolation amplifier for these modules and provides the required electrical isolation between the input and output with an opto-coupler. Short circuit protection is provided by a built-in desaturation detector. A fault signal is provided if the short circuit protection is activated.
- Manufacturer Product Number: M57962L
- Description: IC GATE DRVR PWR MGMT MOSFET
- Detailed Description: Low-Side Gate Driver IC Non-Inverting Module
QC962-8A
QC962?is a hybrid integrated IGBT driver designed for driving N-channel IGBT modules in any gate amplifier application. The device provides the required electricalisolation between input and output with the opto-coupler. Short circuit protection is provided by a built-in desaturation detector. A fault signal is provided if the short circuit protection is activate.
QC962 IGBT Gate Driver?Features:-
- Built in high CMRR opto-coupler (CMR: Typical: 30kV/?s, Min.:15kV/?s)
- Two supply drive topology
- TTL compatible input interface
- Electrical isolation voltage between input and output with opto-couplers (Viso=3750VRMS/min)
- Built in short circuit protection circuit with in for fault output
- Soft IGBT turn-off and protection circuit time reset
- Controlled time detected short circuit
- Switching frequency up to 20kHz
- Pin and characteristic are compatible with M57962AL
QC962 IGBT Gate Driver?Applications:-
- General-purpose Inverter
- AC Servo Systems
- Unint erruptable Power Supplies(UPS)
- Welding Machines
STGF19NC60KD IGBT – 600V 20A Short-Circuit Rugged IGBT
The STGF19NC60KD IGBT devices are very fast IGBTs developed using advanced PowerMESH? technology. This process guarantees an excellent trade-off between switching performance and low on-state behavior.
Features:-
? Low on voltage drop (VCE(sat))
??Low CRES / CIES ratio (no cross-conduction susceptibility)
??Short-circuit withstand time 10 ?s
??IGBT co-packaged with ultra fast freewheeling diode
STGIPS20K60 – GIPS20K60 IGBT Module – 600V 17A Intelligent IGBT Power Module
The STGIPS20K60 is an intelligent power module provides a compact, high performance AC motor drive in a simple, rugged design. Combining ST proprietary control ICs with the most advanced short-circuitrugged IGBT system technology, this device is ideal for 3-phase inverters in applications such as home appliances and air conditioners. SLLIMM? is a trademark of STMicroelectronics.
