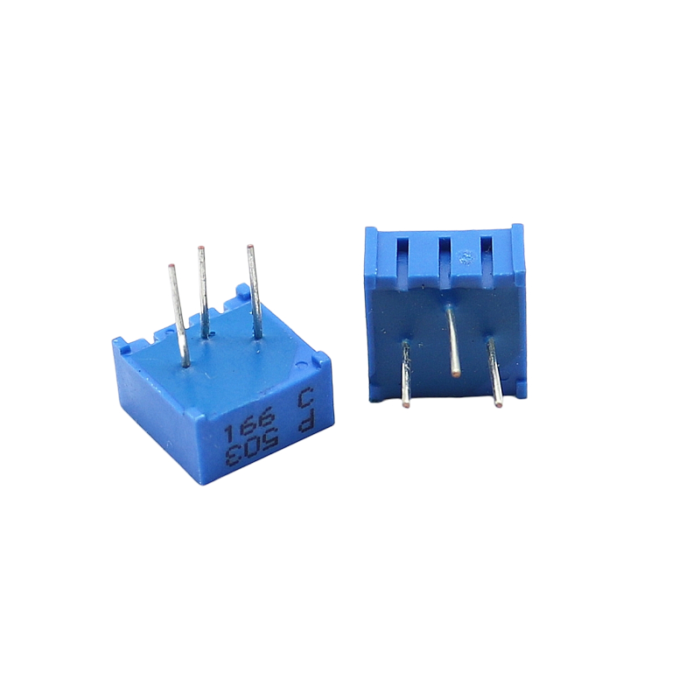

Bourns 3386P-50k-503 Trimmer Potentiometer

Specifications of 3386P-50k-503

• Single Turn / Cermet / Industrial / Sealed
• Available on tape and reel
• Available with a knob for finger adjustment
• Available with an extended shaft
• Available with a cross-slot rotor
• Top and side adjust kinds (most common are F, P, H, W, and X)
• RoHS compliant* version is available.

Physical Characteristics of  3386P-50k-503

• Mechanical Angle – 310 ° nom.
• Torque – 5.0 oz-in. max.
• Stop Strength – 15.0 oz -in. min.
• Terminals – Solder able pins
• Weight – 0.03 oz.
• Marking – Manufacturer’s trademark, resistance code, wiring diagram, date code, manufacturer’s model number and style
• Flammability – U.L. 94V-0
• Standard Packaging – 50 pcs. per tube
• Wiper – 50 % (Actual TR) ±10 %
• Adjustment Tool – H-90
